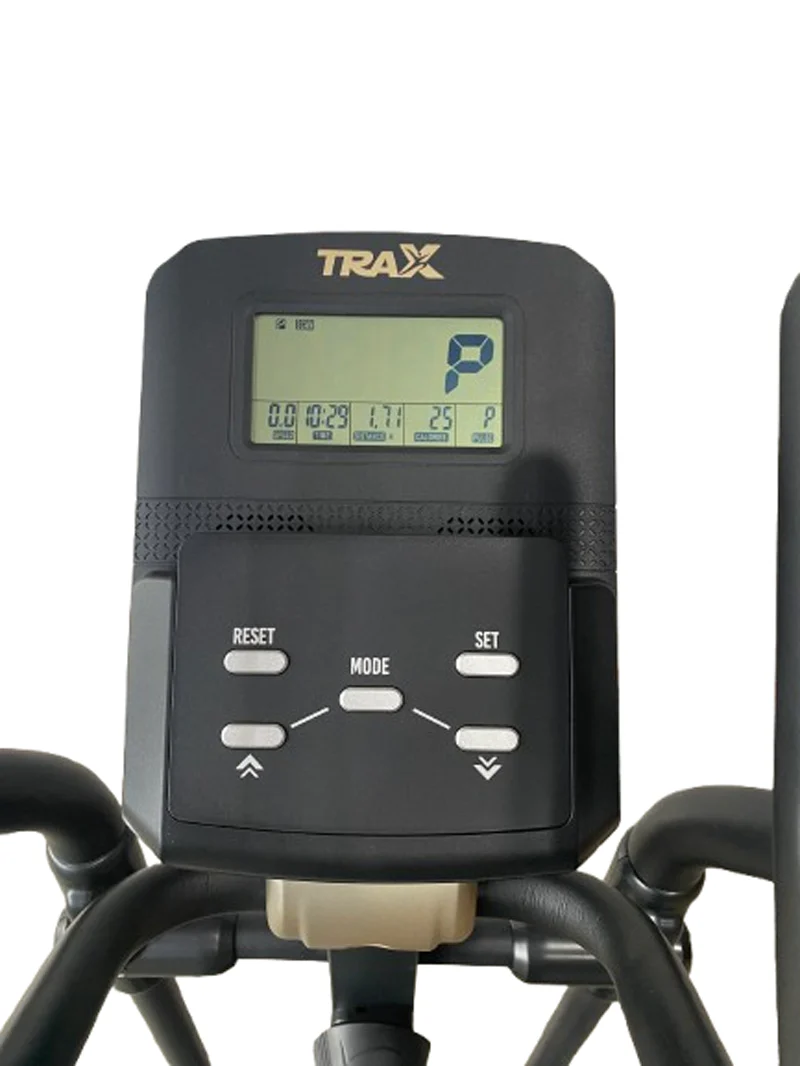

Key Functions: MODE: Select and lock your preferred function. SET: Enter or exit the setting mode. UP: Increase values (Time, Distance, Calories, Pulse) during setup. Hold to speed up increments. DOWN: Decrease values during setup. Hold to speed up decrements. RESET: Reset all values to zero with a single press.

Operation Procedures: Auto On/Off: The system activates upon detecting input or key presses and powers off after 4 minutes of inactivity. Reset: Reset the device by pressing the MODE/RESET key for 3 seconds or replacing the battery. Mode Selection: Choose between SCAN or LOCK modes by selecting the desired function.

Core Functions: Time: Displays total workout time. Speed: Indicates your current speed. Distance: Tracks the distance covered in each workout. Calories: Calculates calories burned during exercise. RPM (if available): Measures average revolutions per minute. Pulse (if available): Displays real-time heart rate in beats per minute. Place your palms on the contact pads or use the ear clip for an accurate reading within 30 seconds. Scan: Automatically cycles through functions every 6 seconds for hands-free monitoring.



*Call branch to verify availability. Prices may differ outside Metro Manila. All published prices are subject to change without prior notice.

[#header1] Warranty [/header1][#content1]

3 years frame, 1 year service, 3 months consumable parts

The following are NOT COVERED BY THE WARRANTY:

1. Repairs or attempted repairs and modifications by anyone not authorized by CHRIS SPORTS.
2. Serial numbers' label has been defaced, modified, or removed.
3. Damages caused by accidents, abuse, misuse, neglect, or failure to follow instructions contained in the Owner’s manual.
4. Damages caused by water, fire, flood, getting hit by other objects, and other fortuitous events.
5. Damages caused by pets, pests, cockroaches, rats, and other rodents including insect infestations.
6. Damages caused by accidental plugging of wrong voltage not conforming to the unit’s requirement.

7. Damages caused by power surge and lightning charges.
8. Unit is exposed in outdoors (garage, pool area, patio, etc.), making it exposed to sun, rain, dust, and moisture.
9. Damages occurred during shipment (claims must be presented to shipper).
10. Home service fee, repair service fee, and travel expenses for field service.
11. Removal and installation charges are not covered.
12. The following are not covered by warranty: foam, wheels, batteries, upholstery, seat, and pedal straps.

 [/content1]

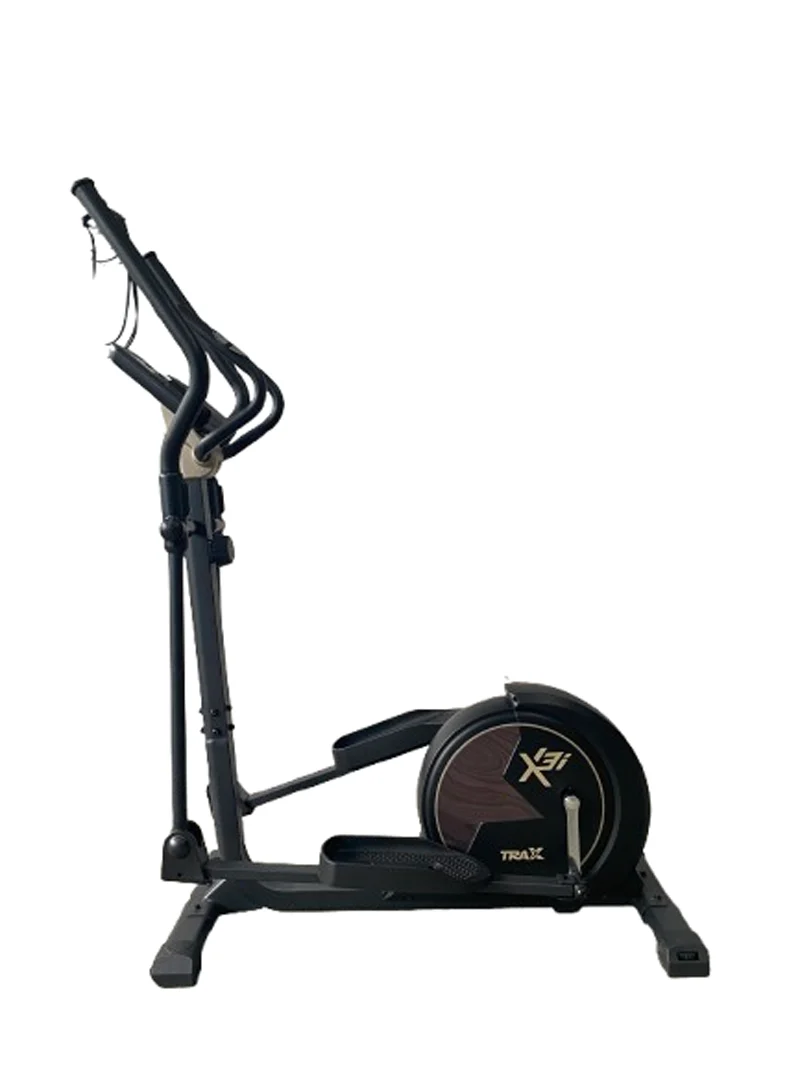

[#header2] Specification [/header2][#content2]

Bottle holder	N/A
Handlebar	with hand pulse
System	belts drive system
Pulley	Plastic pulley φ260
Total Weight	5kg flywheel
Crank	3pcs
Stride length	33cm ，6.5''crank

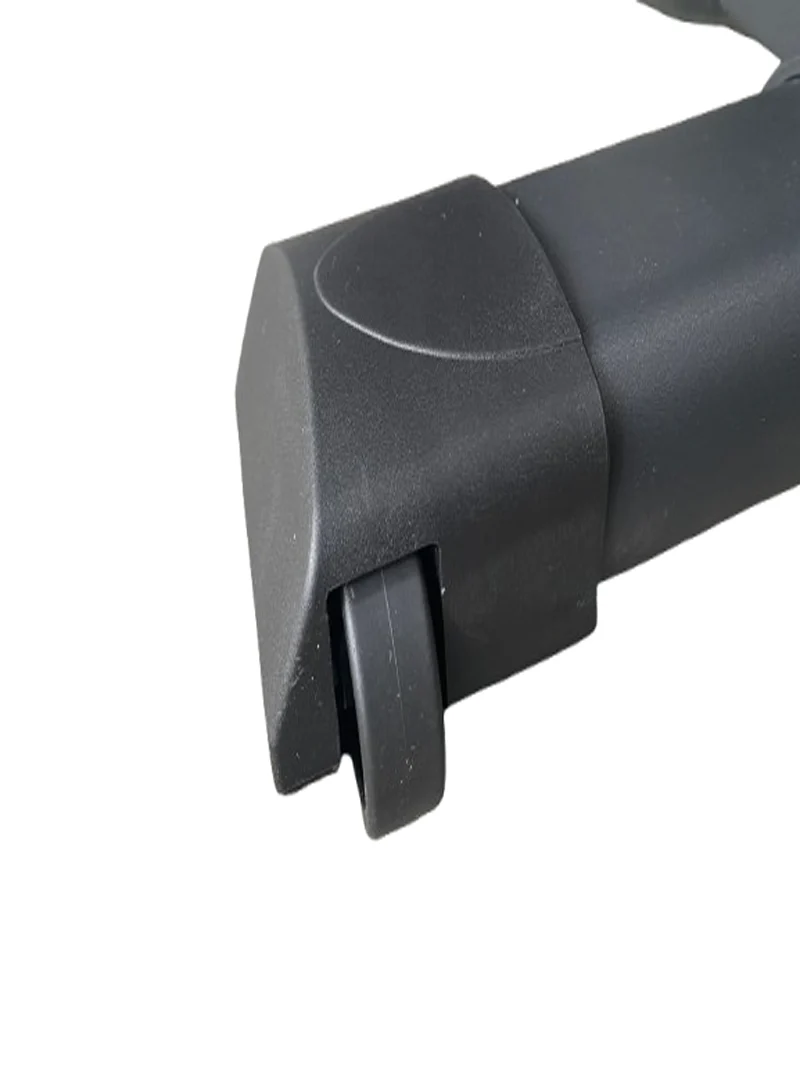

Transport Wheel	YES

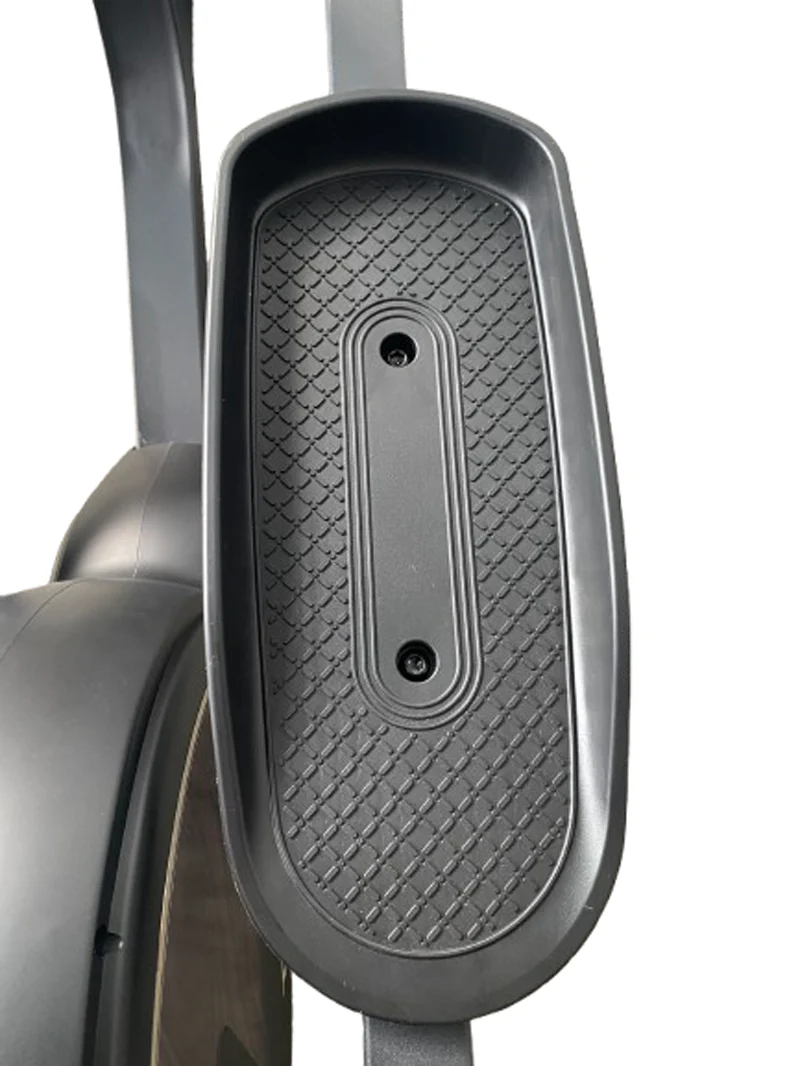

Pedal	Non-slip pedal
N.W./G.W.	38.7/45kgs
Assembly size	126x54x164cm
Carton Size	115x28x67cm
Loading QTY 20'/40/'40'HQ	135/270/320 sets

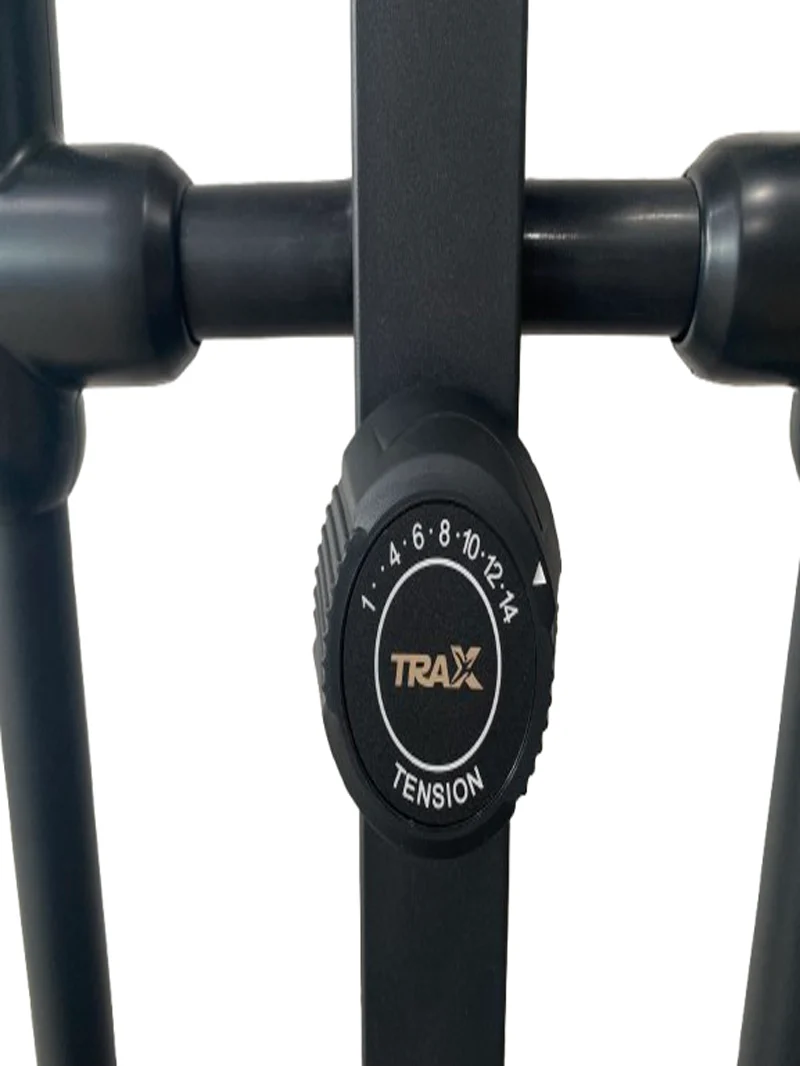

Controller	14-level control knob
Console	HR6036SP
Console Size	280x210mm
LCD Size	110x58mm
Console Function	SCAN,TIME,SPEED,DODMETER,DISTANCE, CALORIES



 [/content2]

[#header3] Download Manuals [/header3][#content3]

	X3i User Manual

[/content3]



[#header4] About the Brand [/header4][#content4]

Trax carries a wide selection of home gym equipment such as treadmills, exercise bikes, elliptical trainers, as well as strength training equipment.
